The Jayco Precept 34B is a high-quality Class A motorhome that combines luxurious amenities with reliable performance. This coach is equipped with optional full-body paint, enhancing its aesthetic appeal and providing added protection. Inside, the Precept 34B boasts a beautiful interior and offers a comfortable living space with the optional washer/dryer combo, making extended trips a breeze. Jayco's commitment to quality is further reinforced by their industry-leading warranty, which covers virtually everything for two full years, plus provides a three-year structural warranty, giving owners peace of mind. The Precept 34B is designed for travelers who seek a top-tier Class A motorhome experience with exceptional features and lasting value.

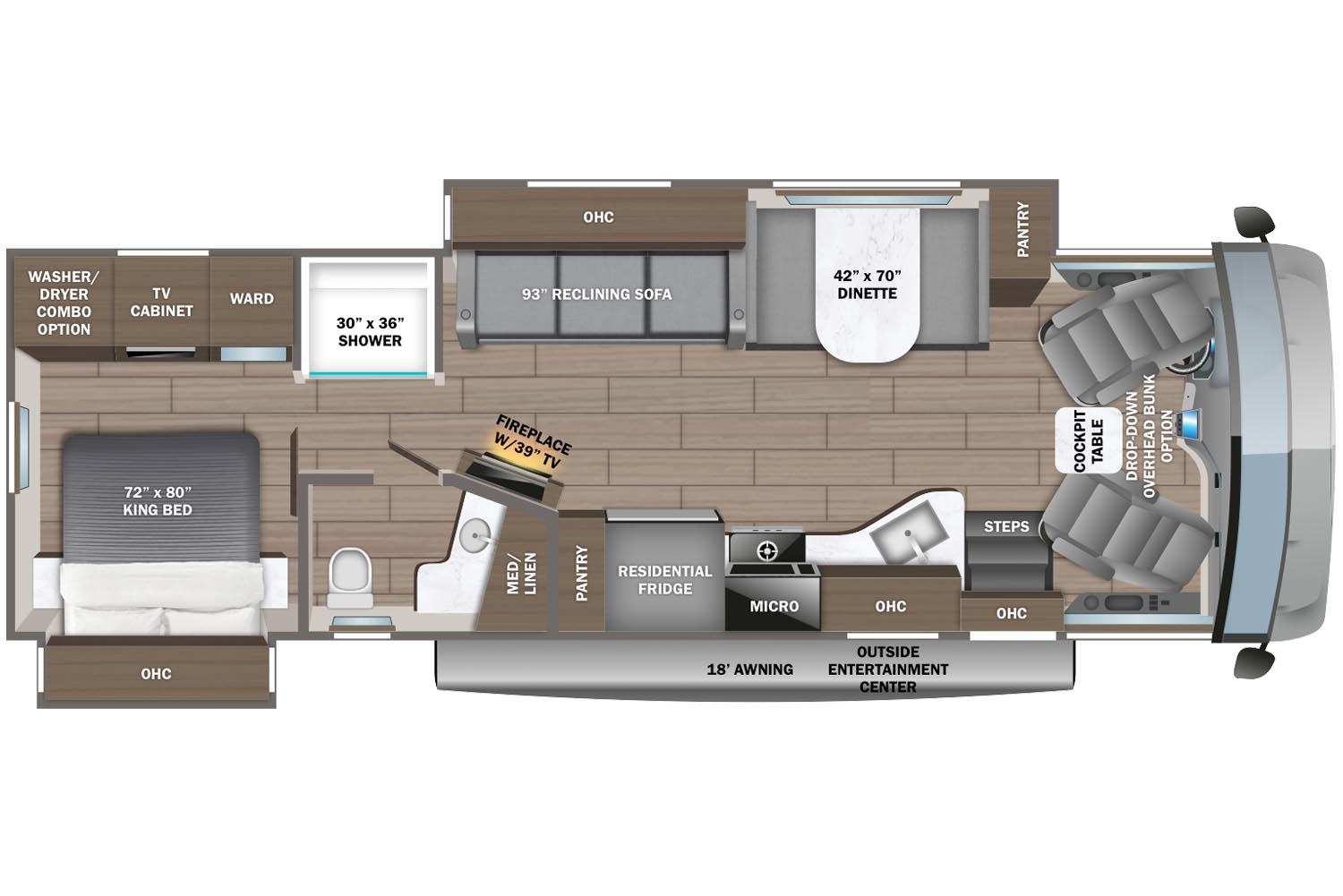

2025 Jayco Precept 34B

GVWR:

22,000 lbs.

GCWR:

26,000 lbs.

Length:

36' 11"

Sleeps:

up to 6

Stock: 25-22715N   •   Location: Tulsa

KEY FEATURES

Jayco 2+3 Year Warranty

Jayco has a decades-long reputation of quality, backed by 2-year limited and 3-year structural warranty for peace-of-mind protection.



JRide Plus Handling Package

Enjoy the best, most stable ride with computer-balanced driveshaft, Bilsteen steering stabilizer, Koni shocks and more.



Automatic Hydraulic Leveling Jacks

Setting up camp is a breeze with this powerful hydraulic auto leveling system.



Second A/C

Stay cool in the hottest weather! This RV features two A/Cs and main A/C is equipped with heat pump.



Exterior Entertainment Center

Catch the game or your favorite shows while still enjoy the outdoors with the exterior entertainment center.



5,500W Generator

Camp longer and in more places when you bring your own power with you!





360 TOUR

Sorry, 360 Tour is not available for this model.

SPECS AND OPTIONS

FACTORY-ADDED OPTIONS

• Benton Interior Decor
• Java Paint Package
• USA Standards
• Customer Value Package
• Residential Refrigerator
• Washer/Dryer Combo
• Front Overhead Bunk

DOWNLOAD MSRP SHEET

SPECS

• Gross Vehicle Weight Rating (lbs): 22,000
• Gross Combined Weight Rating (lbs): 26,000
• Exterior Length (overall): 36' 11"
• Exterior Height (with A/C): 12' 10"
• Exterior Width: 8' 5"
• Exterior Width (with slides out): 12' 7"
• Interior Height (main): 7' 0"
• Awning Length: 18' 0"
• Fresh Water Capacity (gals): 72
• Gray Water Capacity (gals): 40
• Black Tank Capacity (gals): 40
• Propane Unit (lbs): 56
• Fuel Tank Capacity (gals): 80
• Sleeps up to: 6
• Tire Size: 235/80R22.5G
• Engine Size: 7.3L 2V DEVCT NA PFI V8
• Exterior Cargo Capacity (cu. ft.): 117



STANDARD FEATURES AND PACKAGES

STANDARD DRIVING EQUIPMENT

• Ford® F53 chassis
• GVWR- 22,000 lb. (31UL, 34B, 34G) 24,000 lb. (36A, 36C)
• GCWR- 26,000 lb. (31UL, 34B, 34G), 30,000 lb. (36A, 36C)
• 7.3L V-8 335 HP engine with 468 ft.-lb. torque
• 6-speed automatic TorqShift® transmission with overdrive and tow haul mode
• 210-amp alternator
• Catalytic converter theft deterrent
• G-rated highway tires- 235/80R22.5 (31UL, 34B, 34G), 255/80R22.5 (36A, 36C)
• Front and rear disc, 4-wheel anti-lock brakes
• 5,000 lb. rear hitch receiver with dual connector and 7-pin plug
• 12V chassis battery
• 80 gal. fuel tank
• 120 in. panoramic windshield
• Power front privacy shade with manual side privacy shades
• 6-way power and swivel driver/passenger seats
• Soft-touch, vinyl-wrapped automotive dash
• Tilt steering wheel
• Cruise control
• Hill start assist
• Electronic stability control
• Traction control
• Auxiliary start

STANDARD EXTERIOR EQUIPMENT

• StrongholdVBL™ roof, floor and sidewalls
• Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
• One-piece, seamless fiberglass front cap with partial paint
• One-piece, seamless fiberglass rear cap
• One-piece, seamless, crowned fiberglass roof
• Fiberglass exterior walls with vinyl graphics
• Entrance door with industry’s largest travel-view window
• Electric-powered entrance steps
• Lockable, pass-through storage compartments with metal slam latches
• LED headlights
• Third brake light
• Roof ladder
• Prep for satellite dish
• Cable TV hookup with RG-6 coax and video selector switch
• Winegard 2.0 Wi-fi/4G antenna
• 200W solar panel with dual controller
• (2) 6V AGM (220Ah) house batteries on slideout tray
• Transfer switch with reverse polarity protection
• Detachable power cord
• 16.5 gal. propane tank (56 lb.)
• LP quick-connect hookup
• Heated holding tanks (12V pads)
• Exterior utility center
• Winterization drain system
• Black tank flush
• Outside shower
• 12V demand water pump
• Water filtration system

STANDARD INTERIOR EQUIPMENT

• Firefly total coach control system with wall-mounted touchscreen and mobile app
• 84 in. interior ceiling height with padded vinyl ceiling
• High-intensity recessed LED ceiling lights
• LED-lit fascia
• Hardwood cabinet doors and drawer fronts
• Ball-bearing drawer guides
• Jayco-exclusive, easy-operation legless dinette table
• 2-point lap safety belts in all designated seating locations
• Car seat tethers (select floorplans)
• JBL® audio system
• 30,000 BTU auto-ignition ducted furnace (31UL, 34B, 34G, 36C)
• (2) 30,000 BTU auto-ignition ducted furnaces (36A)
• Electric fireplace (34B, 34G, 36C)
• Residential refrigerator
• Furrion® all-in-one cooktop and oven
• Residential-size microwave
• Decorative kitchen backsplash
• Shower with decorative surround, glass door, skylight and light
• Stainless steel bathroom sink
• Porcelain toilet with foot flush
• Powered roof vent in bathroom with wall switch
• Walk-around, king-size bed with bedspread and nightstands
• USB port and wireless charging in nightstands
• LED HD Smart TV in bedroom
• Under-bed storage (select models)
• Large wardrobes
• Bunks with industry-exclusive 300 lb. capacity each (36A)
• Wall-mounted tablet holder in each bunk (36A)
• Smoke alarm
• Carbon monoxide detector
• Fire extinguisher

CUSTOMER VALUE PACKAGE (MANDATORY)

• JRide® Plus (details below)
• Automatic hydraulic leveling jacks
• Lippert™ 4000 series frameless bonded windows
• 15,000 BTU A/C unit with heat pump and second 13,500 BTU A/C unit
• Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket
• Electric patio awning with LED lights
• Slideout awning(s)
• 5,500W generator with auto-gen start
• 1,200W inverter
• 50-amp electrical service
• 10 gal. gas/electric water heater
• Sony® infotainment center with Apple® CarPlay™ and Android Auto™
• Backup and side-view cameras
• Removable driver/passenger cockpit table
• LED-lit, solid-surface kitchen countertops with recessed stainless steel sink and sink covers
• LED HD Smart TV in living area
• Integrated day/night cassette shades

JRIDE® PLUS

• Computer-balanced driveshaft
• Bilstein® steering stabilizer
• Koni® shocks
• Variable-rate front and rear jounce bumpers
• Heavy-duty front and rear stabilizer bars
• 22.5 in. Michelin® tires
